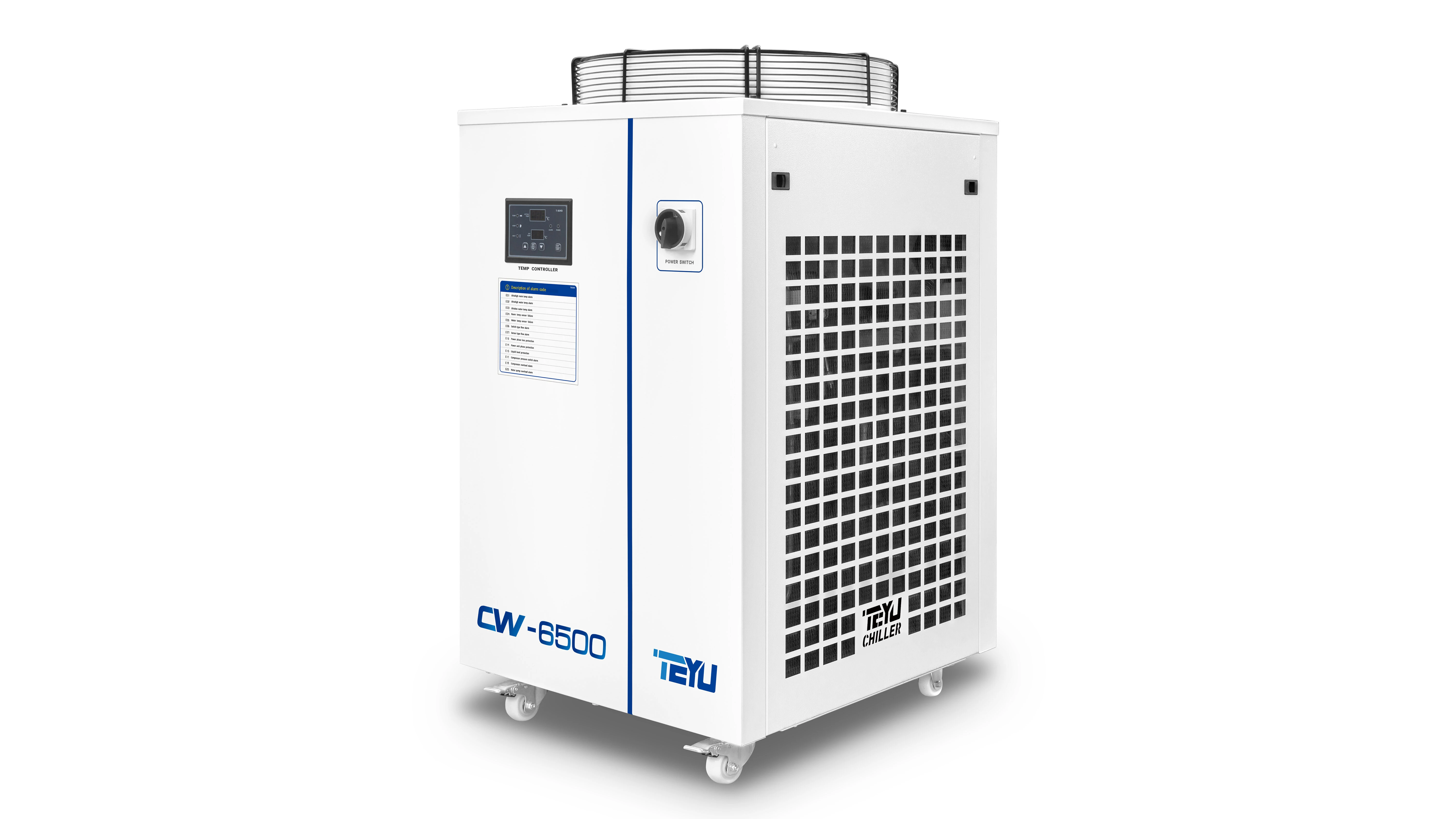

Industrial Water Chiller Unit CW-6500 for CO2 Laser System

Industrial Water Chiller Unit CW-6500 for CO2 Laser System

TEYU industrial water chiller unit CW-6500 is the result of many years of research and expertise and is highly recommended for cooling 500W RF CO2 laser. Up to 15kW large cooling capacity, it can provide consistent cooling while at the same time offering a high degree of energy efficiency. With water chiller unit CW-6500, optimum cutting quality and speed of your CO2 laser cutting machine can be achieved.

The core components like the evaporator, condenser and outer casings are manufactured independently by TEYU Chiller Manufacturer to ensure high quality standards. The thoughtful details like visual water level check, RS-485 Modbus communication function and intelligent temperature controller integrated with alarm functions are all the result of our close cooperation with users. Available in 380V and with 2 years warranty.

Inquiry

Write a Review

Product Introduction

Industrial Water Chiller CW-6500 for CO2 Laser Cutting Machine

Model: CW-6500

Machine Size: 83 X 65 X 117cm (LX W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-6500ENTY	CW-6500FNTY
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	1.4~16.6A	2.1~16.5A
Max. power consumption	7.5kW	8.25kW
Compressor power	4.6kW	5.12kW
Compressor power	6.26HP	6.86HP
Nominal cooling capacity	51880Btu/h
	15kW
	12897Kcal/h
Pump power	0.55kW	1kW
Max. pump pressure	4.4bar	5.9bar
Max. pump flow	75L/min	130L/min
Refrigerant	R-410A
Precision	±1℃
Reducer	Capillary
Tank capacity	40L
Inlet and outlet	Rp1"
N.W	124Kg
G.W	146Kg
Dimension	83X65X117cm (LX W X H)
Package dimension	95X77X135cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 15000W

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* Intelligent temperature controller

* Multiple alarm functions

* Ready for immediate use

* Easy maintenance and mobility

* RS-485 Modbus communication function

* Available in 380V

Optional Items

Heater

Filter

Product Details

Intelligent temperature controller

The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

TEYU Laser Chiller Unit CW-6500 Water Level Indicator

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

TEYU CO2 Laser Chiller CW-6500 Caster Wheels

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

TEYU Industrial Water Chiller CW-6500 Ventilation Distance

Certificate

Product Working Principle

CO2 Laser Cutting Machine Chiller Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
