Rack Mount Cooler RMFL-2000 for 2kW Handheld Laser Welder Cleaner Cutter

Rack Mount Cooler RMFL-2000 for 2kW Handheld Laser Welder Cleaner Cutter

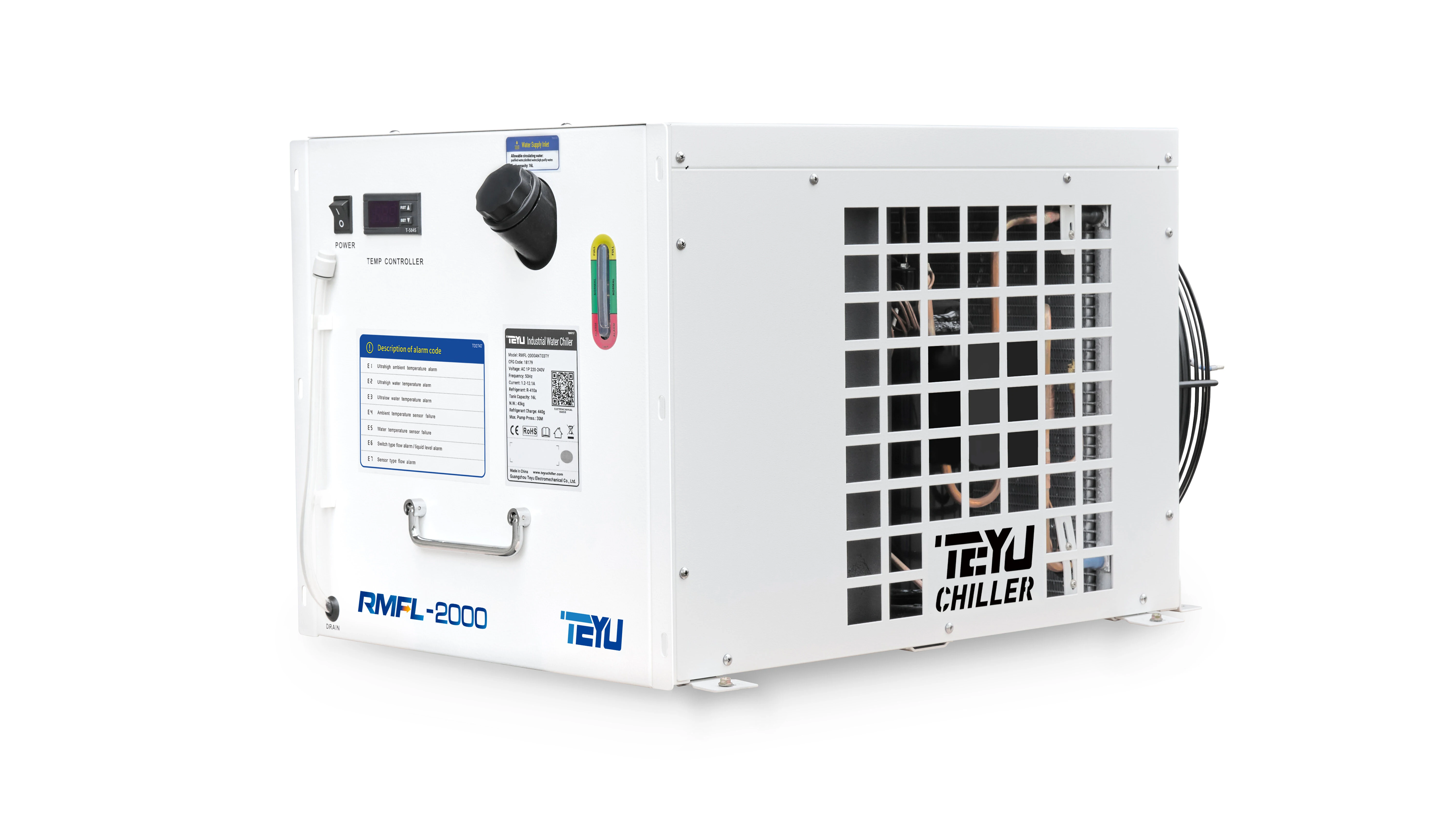

TEYU RMFL-2000 is a rack mount industrial chiller designed for cooling up to 2KW handheld laser welding cleaning machine and mountable in a 19-inch rack. Because of the rack mount design, industrial water cooling system RMFL-2000 allows the stacking of related device, indicating a high level of flexibility and mobility. Temperature stability is ±0.5°C and the temperature control range is from 5°C to 35°C.

Rack mount laser cooler RMFL-2000 comes with a high-performance water pump. Dual temperature control to realize an industrial chiller to cool the fiber laser and the optics/laser gun at the same time. The water fill port and drain port are mounted on the front together with a thoughtful water level check. Intelligent digital control panel displays the temperature and built-in alarm codes. High level of flexibility and mobility, making this active cooling water chiller the perfect cooling solution for handheld laser.

Inquiry

Write a Review

Product Introduction

Rack Mount Cooler RMFL-2000 for 2KW Handheld Laser Welding System

Model: RMFL-2000

Machine Size: 77 X 48 X 43cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	RMFL-2000ANT03TY	RMFL-2000BNT03TY
Voltage	AC 1P 220-240V	AC 1P 220-240V
Frequency	50Hz	60Hz
Current	1.5~12.1A	1.5~14.7A
Max. power consumption	2.81kW	3.27kW
Compressor power	1.36kW	1.77kW
Compressor power	1.82HP	2.37HP
Refrigerant	R-32/R-410A	R-410A
Precision	±0.5℃
Reducer	Capillary
Pump power	0.32kW
Tank capacity	16L
Inlet and outlet	Φ6+Φ12 Fast connector
Max. pump pressure	4bar
Rated flow	2L/min+＞15L/min
N.W.	51Kg
G.W.	61Kg
Dimension	77x48x43cm(LxWxH)
Package dimension	88x58x61cm(LxWxH)
Package dimension	88x58x61cm(LxWxH)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Rack mount design

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-32/R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Front mounted water fill port and drain port

* Integrated front handles

* High level of flexibility and mobility

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

TEYU RMFL-2000 Laser Chiller Temperature Controller T-506E

Dual temperature control

Intelligent temperature controller. Controlling the temperature of the fiber laser and optics at the same time.

Front mounted water fill port and drain port

The water fill port and drain port are mounted in the front for easy water filling and draining.

Integrated front handles

The front-mounted handles help move the chiller very easily.

Certificate

Product Working Principle

TEYU Laser Chiller RMFL-2000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
