Air Cooled Water Chiller CWFL-2000 for 2kW Fiber Laser Metal Cutter Welder

Air Cooled Water Chiller CWFL-2000 for 2kW Fiber Laser Metal Cutter Welder

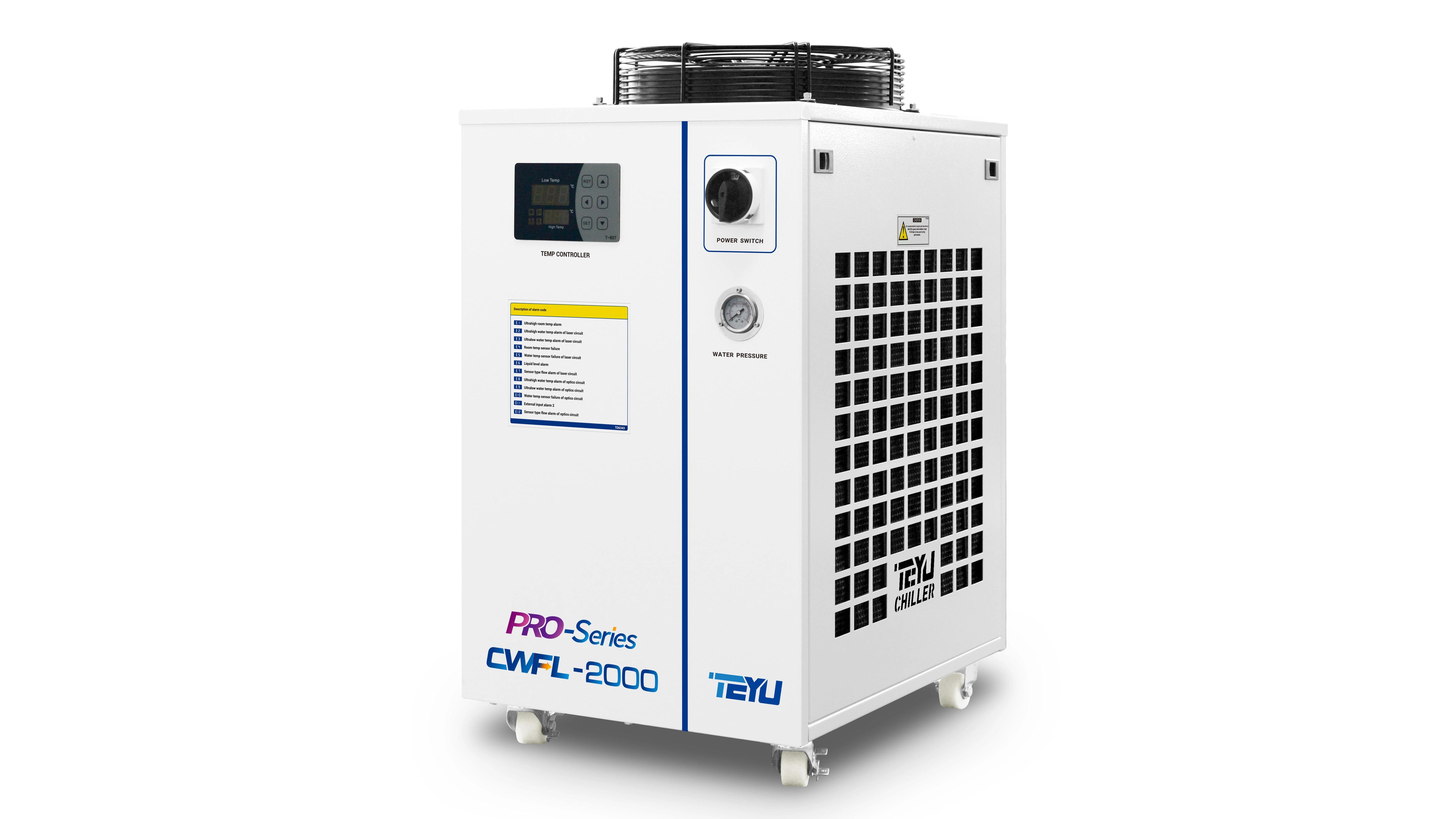

TEYU air-cooled water chiller CWFL-2000 is made specifically by TEYU industrial chiller manufacturer to control the temperature of fiber laser metal cutter welder up to 2kW. CWFL-2000 chiller features two channels in one housing, targeting two areas in the fiber laser system - the fiber laser and the optics. This dual channel design reduces the water chiller footprint to a great extent comparing with the two-single-chiller arrangement.

CWFL-2000 industrial fiber laser cooling system is designed to operate under indoor conditions and can be easily serviced by taking away the side housings. It comes equipped with an easy-to-read water level check and easy-fill port, making water adding quite convenient. Multiple alarm devices provide further protection, making the operation of industrial chiller and laser equipment more stable and reliable.

Inquiry

Write a Review

Product Introduction

Air Cooled Water Chiller System CWFL-2000 for 2KW Fiber Laser Metal Cutter

Model: CWFL-2000

Machine Size: 70 X 47 X 89cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWFL-2000ANPTY	CWFL-2000BNPTY
Voltage	AC 1P 220-240V	AC 1P 220-240V
Frequency	50Hz	60Hz
Current	3.4~20.3A	3.9~19.9A
Max. power consumption	3.61kW	3.84kW
Heater power	0.55kW+0.6kW
Precision	±0.5℃
Reducer	Capillary
Pump power	0.55kW	0.75kW
Tank capacity	14L
Inlet and outlet	Rp1/2"+Rp1/2"
Max. pump pressure	4.4bar	5.3bar
Rated flow	2L/min+＞20L/min
N.W.	69Kg
G.W.	81Kg
Dimension	70 X 47 X 89cm (L X W X H)
Package dimension	73 X 57 X 105cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* User-friendly controller interface

* Integrated alarm functions

* Back mounted fill port and visual water level

* Optimized for high performance at low temperatures

* Ready for immediate use

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

CWFL-2000 Laser Chiller Temperature Controller T-607

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

CWFL-2000 Laser Chiller water inlet and outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-2000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
