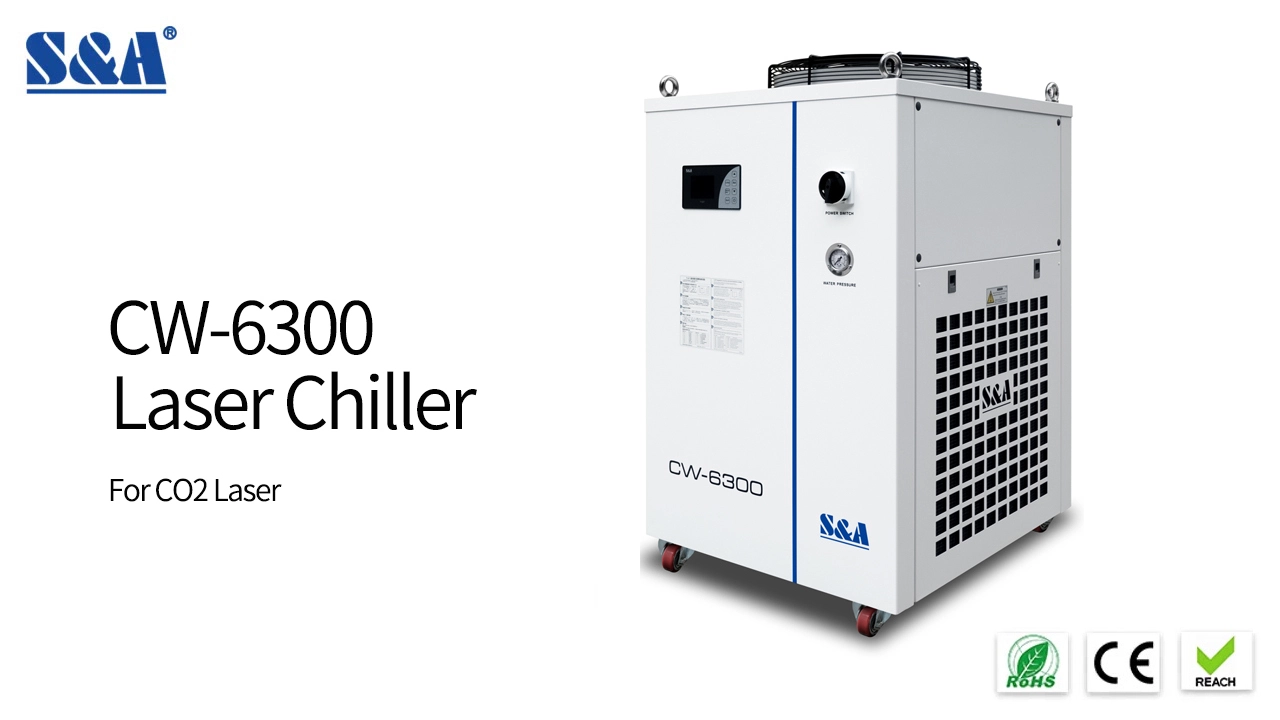

Air cooled water chillers CW-6300 cooling capacity 8500W Support Modbus-485 communication protocol

S&A CW-6300 air cooled water chillers with cooling capacity 8500W and support Modbus-485 communication protocol, are applied to cool a single 300W YAG laser or a single 300W co2 metal RF tube or a single 300W semiconductor laser.
  • Item NO.:

    CW-6300
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Cooling capacity:

    8500W
  • Precision:

    ±1℃
  • Voltage:

    220/380V
  • Frequency:

    50/60Hz
  • Refrigerant:

    R-22/R-410a
  • Reducer:

    capillary
  • Pump power:

    0.37KW~1.1KW
  • Tank capacity:

    45L
  • Inlet and outlet:

    Rp1
  • Max.pump lift:

    28-53M
  • Max.pump flow:

    70~116L/min
  • N.W:

    165Kgs
  • G.W:

    210Kgs
  • Dimension:

    83*65*117(L*W*H)
  • Package dimension:

    111*85*140(L*W*H)
Inquiry now

WATER CHILLER

S&A CW-6300 air cooled water chillers with cooling capacity 8500W and support Modbus-485 communication protocol, are applied to cool a single 300W YAG laser or a single 300W co2 metal RF tube or a single 300W semiconductor laser.


CW-6300 air cooled water chillers are produced by Guangzhou Teyu Electromechanical Co., Ltd. For over 16 years in screening and training, we integrate lots of superior components suppliers. Our brands "S&A" and "TEYU" have gained approval and trust from thousands of manufacturers at home and abroad which enables our product export rate maintained at over 60% in the long-term.


S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.



  Industrial air cooled water chillers features
1. 8500W cooling capacity; optional environmental refrigerant;
2. ±1℃ precisely temperature control;
3. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval; RoHS approval; REACH approval;

6. Optional heater and water filter;

7.Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.


  Air cooled water chiller machines specification

CW-6300AN: Applied to cool a single 300W YAG laser or a single 300W co2 metal RF tube or a single 300W semiconductor laser;
CW-6302: Dual inlet and outlet series (option); heating device (option); filter(option)

 Air cooled water chiller machines specification


  CONTOUR AND PARTS INTRODUCTION

 chiller CONTOUR AND PARTS INTRODUCTION


Independent production of sheet metal, evaporator and condenser

Multiple alarm protection.

Adopt IPG fiber laser for welding and cutting sheet metal. The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

chiller Independent production of sheet metal

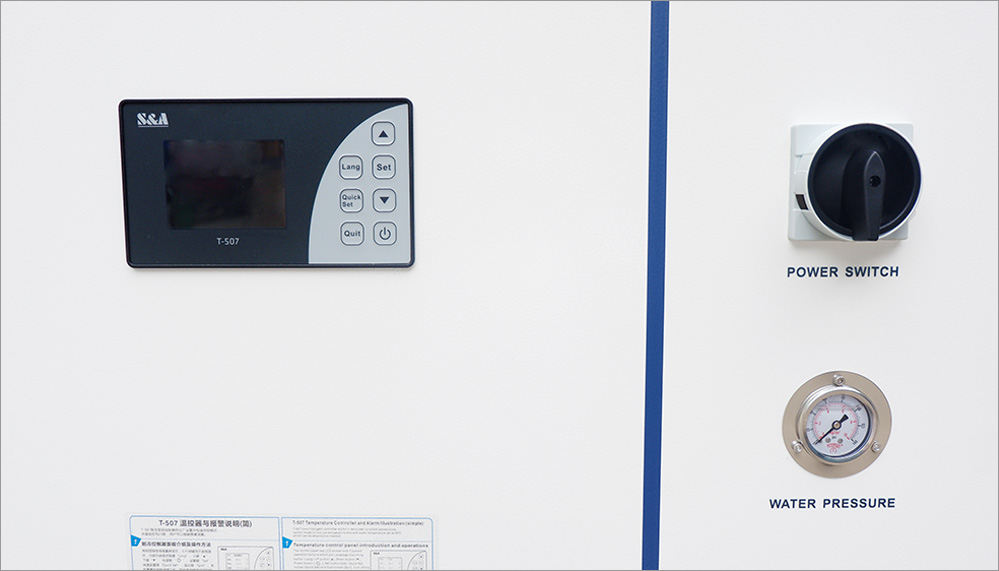

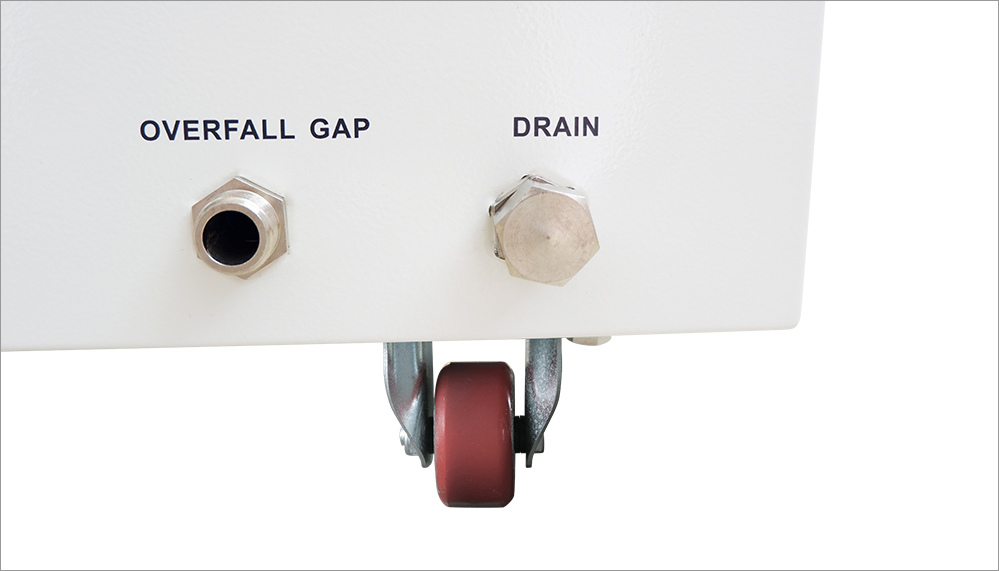

Equipped with water pressure gauges ,drain outlet with valve and universal wheels.
Water pressure gauges help monitor the discharge pressure of water pump while univeral wheels facilitate the moving of the chiller.

chiller water pressure gauges ,drain

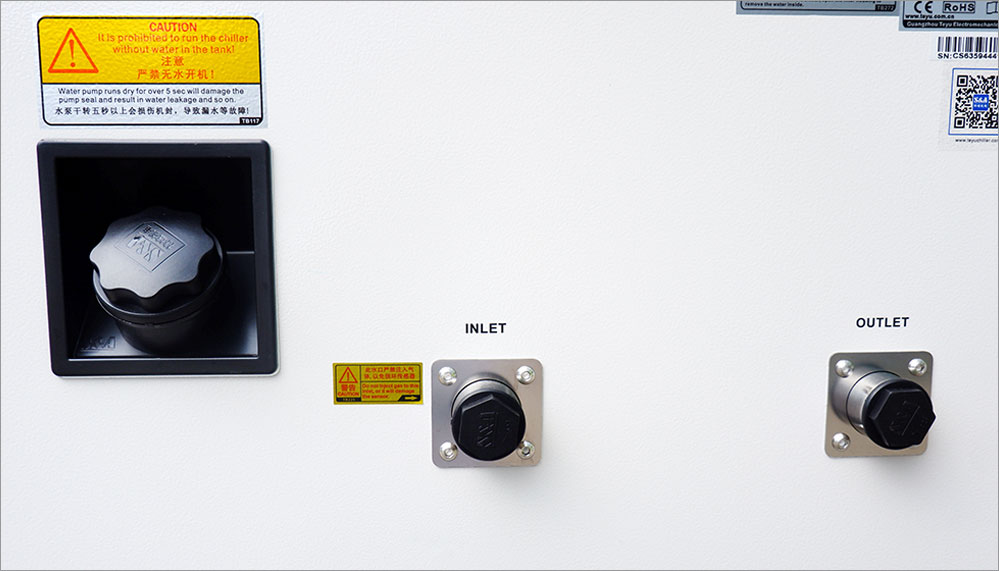

Dual inlet and outlet connector equipped.

Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

laser chillers inlet and outlet

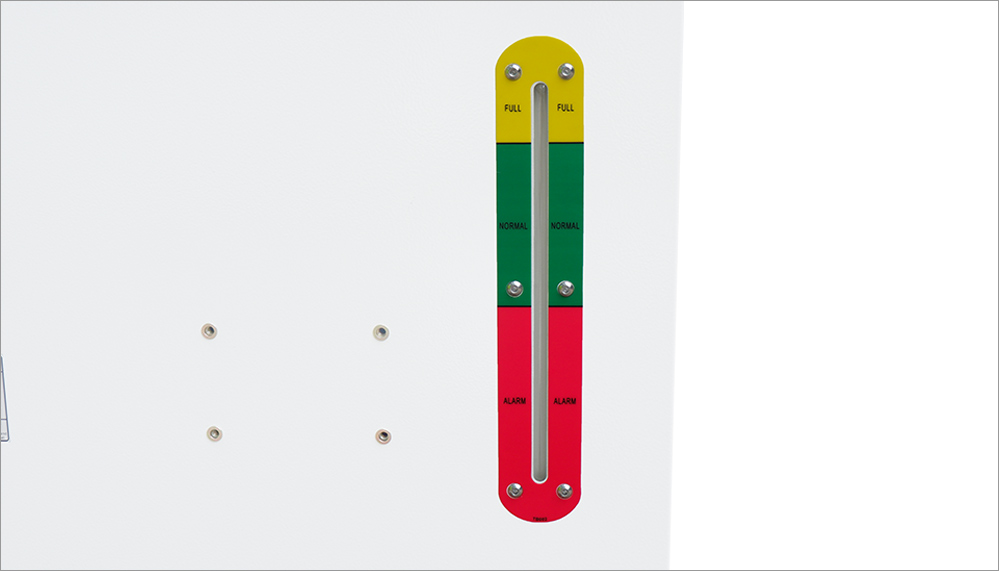

Level gauge equipped.

industrial chillers Level gauge

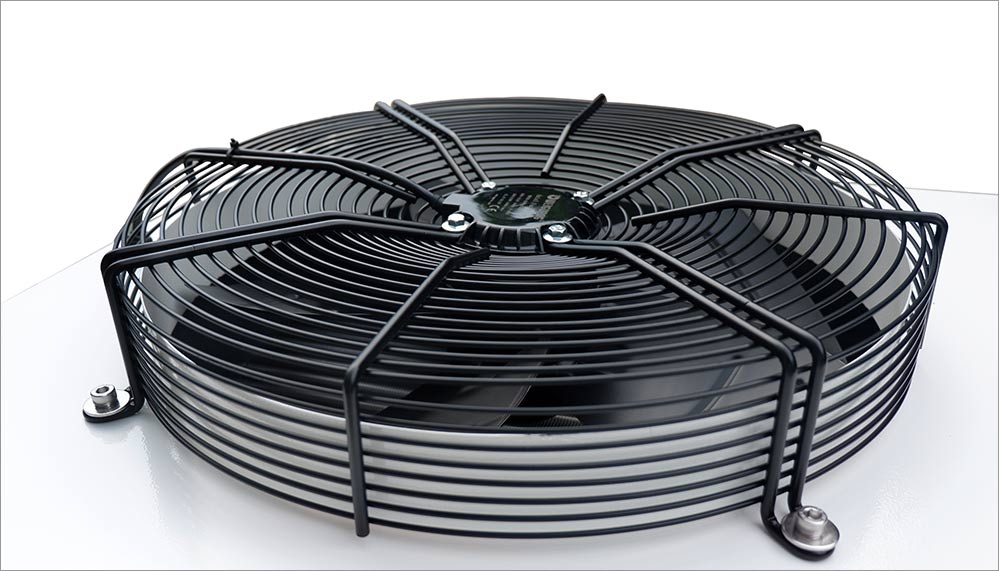

Cooling fan of famous brand installed.

Adopt SAN JU cooling fan with high quality and low failure rate.
water chiller machines cooling fan


Customized dust gauze available and easy to take apart.

chiller Customized dust gauze

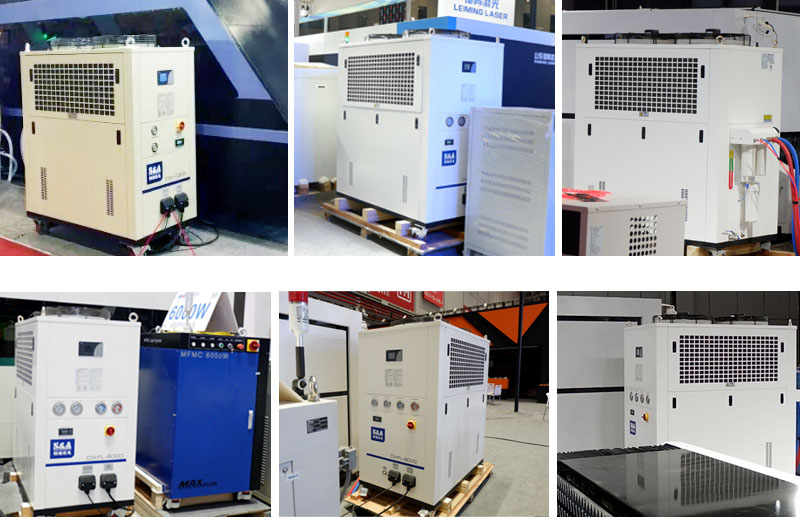

  CHILLER APPLICATION

water chillers application






  WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop


  TEST SYSTEM
With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM



S&A industrial water chiller CW-6300 video

How to set water temperature for T-507 temperature controller of dual temp chiller


S&A Recirculating Water Chiller CW-6300 for Cooling Laser Cleaning Robot

S&A High Precision Laser Cooling System CW-6300 for cooling ZKSX diode laser
