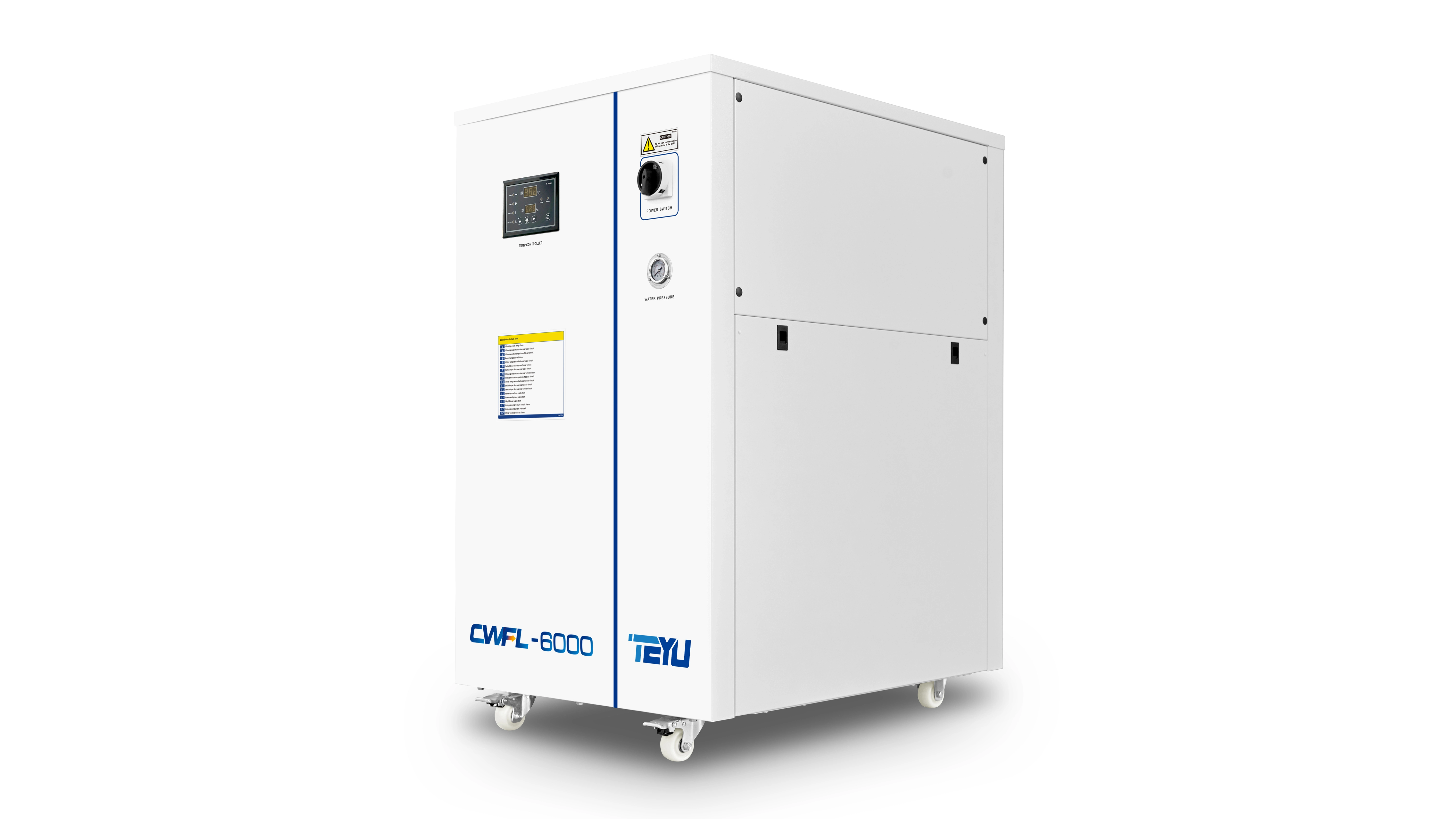

Industrial Chiller CWFL-6000ENSW for 6kW Fiber Laser with Stable Performance

Industrial Chiller CWFL-6000ENSW for 6kW Fiber Laser with Stable Performance

TEYU CWFL-6000ENSW water-cooled chiller is specifically engineered for 6000W fiber laser systems, where heat load and continuous operation demands are high. It delivers precise and stable temperature control to efficiently dissipate heat from the laser source and key optical components, helping maintain cutting quality, beam stability, and reliable performance while reducing the risk of downtime.

With dual-circuit cooling and an industrial-grade design, the CWFL-6000ENSW ensures balanced temperature management under heavy workloads. It supports environmentally compliant refrigerants and provides a dependable cooling solution that improves processing consistency and supports long-term, stable operation.

Inquiry

Write a Review

water-cooled Chiller CWFL-6000ENSWTY

Ideal for Cooling 2kW Fiber Laser Machine

Model: CWFL-6000ENSWTY

Refrigerant: R-410A/R-32

Machine Size: 104 × 71 × 124 cm (L × W × H)

Warranty: 2 years

Standard: CE, REACH and RoHS

water cooled chiller for 6000w fiber laser systems

Industrial Chiller CWFL-6000ENSW for 6kW Fiber Laser with Stable Performance 7

Environmentally friendly refrigerant

Small size with large cooling capacity

Industrial Chiller CWFL-6000ENSW for 6kW Fiber Laser with Stable Performance 9

Low noise level, stable working performance

Satisfy operating requirements of enclosed environment

Product Parameters

Model	CWFL-6000ENSWTY	Voltage	AC 3P 380V
Frequency	50Hz	Current	2.3~16.2A
Max. power consumption	7.35kW	Nominal cooling capacity	42309Btu/h
Max. power consumption	7.35kW		12.4kW
Heater power	1kW+1.8kW		10662Kcal/h
Refrigerant	R-410A/R-32	Precision	±1℃
Reducer	Capillary	Pump power	1.1kW
Tank capacity	70L	Inlet and outlet	Rp1/2"+Rp 1"*2
Max. pump pressure	6.15bar	Rated flow	1.5L/min + >50L/min
N.W.	147kg	Dimension	104 × 71 × 124cm (L × W × H)
G.W.	175kg	Package dimension	112 × 82 × 150cm (L × W × H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

More details

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Certificate

Chiller Working Principle

Chiller Ventilation Distance

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
