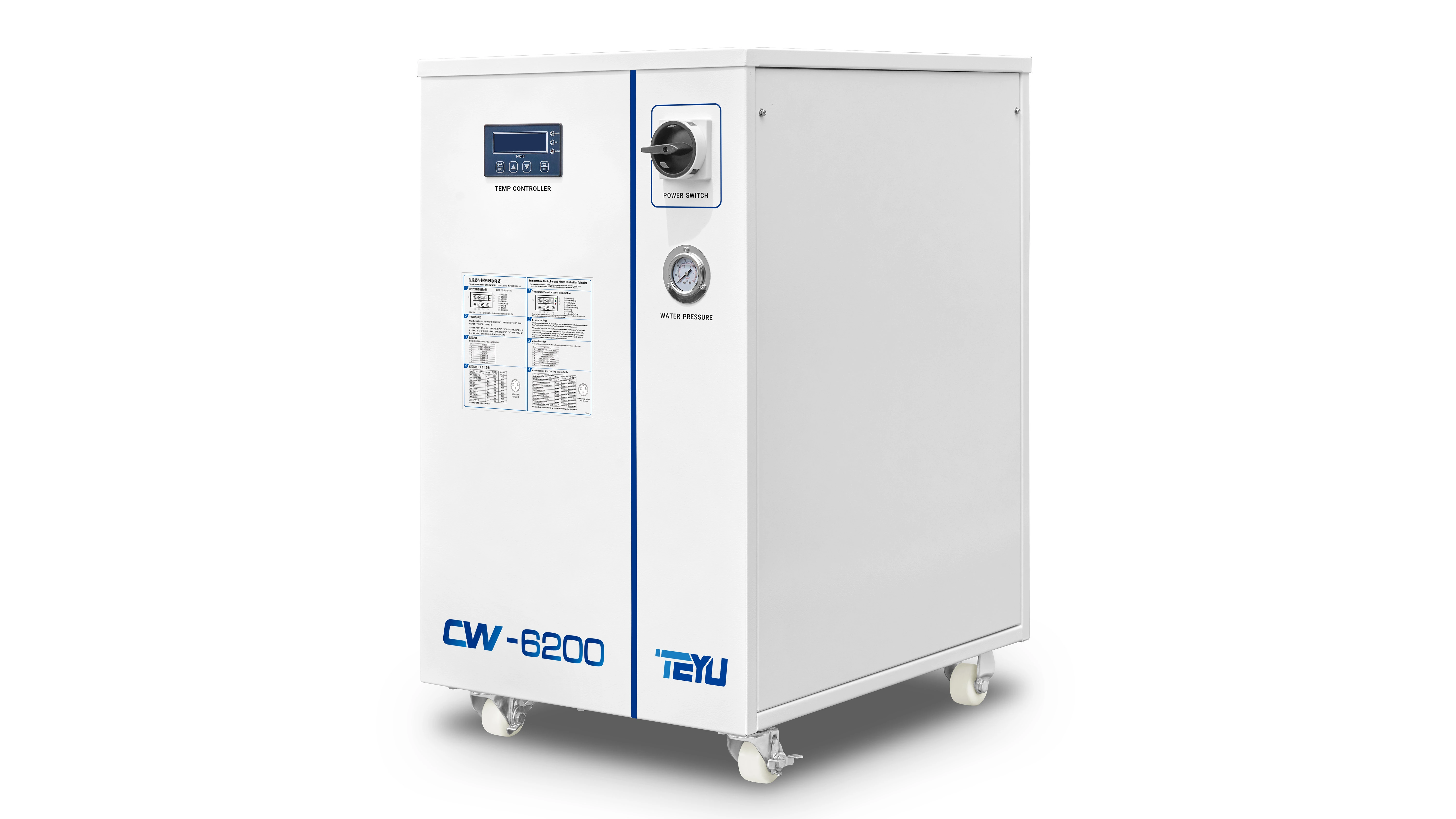

Laboratory Chiller CW-6200ANSWTY ±0.5°C Precision 6600W Cooling Capacity

Laboratory Chiller CW-6200ANSWTY ±0.5°C Precision 6600W Cooling Capacity

Lab chiller is considered an instrument designed to provide the necessary conditions for experimentation and research, which can be moved on wheels, or small enough to be carried or set on a counter. Having the advantages of accuracy, sustainability, cost saving, convenience, safety, etc, CW-6200ANWTY chiller can be used to cool MRI machines, linear accelerators, CT scanners, radiation therapy equipment, etc.

TEYU water cooled lab chiller CW-6200ANSWTY does not need a fan to cool the condenser, which reduces noise and heat emission to the operating space, and is more green energy-saving. Using external circulating water to cooperate with the internal system for efficient refrigeration, smaller in size with a 6600W large cooling capacity with precise PID temperature control of ±0.5°C and less space occupation. Lab chiller CW-6200ANSWTY supports RS485 communication, and complaints with the CE, RoHS and REACH standards and comes with a 2-year warranty.

Inquiry

Write a Review

Product Introduction

Laboratory Chiller CW-6200ANSW ±0.5°C Precision 5040W Cooling Capacity

Model: CW-6200ANSWTY

Machine Size: 67X47X80cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-6200ANSWTY
Voltage	AC 1P 220-240V
Frequency	50Hz
Current	2.5~19.9A
Max. power consumption	3.52kW
Compressor power	1.75kW
Compressor power	2.38HP
Nominal cooling capacity	22519Btu/h
	6.6kW
	5674Kcal/h
Refrigerant	R-410A
Precision	±0.5℃
Reducer	Capillary
Pump power	0.37kW
Tank capacity	22L
Inlet and outlet	Rp1/2"+ Rp 1/2"
Max. pump pressure	3.6bar
Max. pump flow	75L/min
N.W.	67Kg
G.W.	79Kg
Dimension	67X47X80cm (L X W X H)
Package dimension	73X57X105cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling capacity: 6600W

* Active cooling

* Control accuracy: ±0.5°C

* Temperature control range: 5°C ~35°C

* Small size with large cooling capacity

*Stable working performance with low noise level and long lifespan

* High efficiency with low maintenance

* No heat interference to the operating room

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Digital temperature controller

The digital temperature controller offers high precision temperature control of ±0.5°C.

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Water Chiller CW-6200ANSW with Modbus RS485 communication

Modbus RS485 communication port integrated in the electrical connecting box

The RS485 communication port integrated in the electrical connecting box enables communication with the equipment to be cooled.

Certificate

Product Working Principle

Lab Chiller CW-6200ANSW Product Working Principle

FAQ

Is TEYU S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
