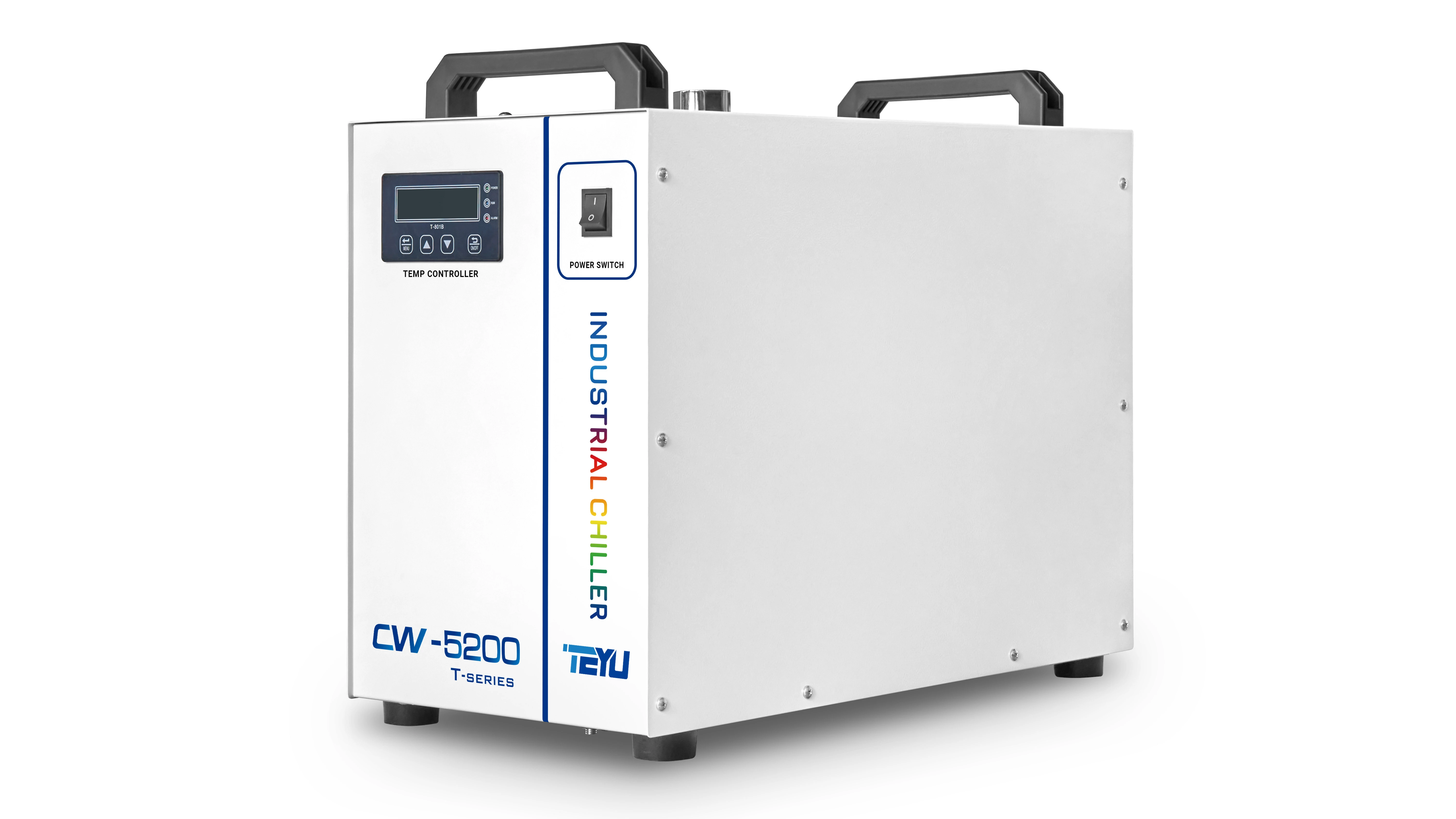

TEYU Water Cooled Chillers CW-5200TISW 1900W Cooling Capacity ±0.1℃ Precision

TEYU Water Cooled Chillers CW-5200TISW 1900W Cooling Capacity ±0.1℃ Precision

Combining operational excellence and technological expertise with an intimate understanding of customer needs, TEYU S&A offers the water cooled chiller CW-5200TISW to ensure accurate and constant cooling conditions for laboratory equipment. CW-5200TISW Chiller has a PID temperature control of ±0.1℃ and up to 1900W cooling capacity, which is ideal for medical instruments and semiconductor laser processing machines that are operating in enclosed environments such as dust-free workshops, laboratories, etc.

Water chiller CW-5200TISW has a digital display to monitor and control instrument temperature from 5-35°C. An RS485 communication port is provided to enable communication with the equipment to be cooled. Furthermore, a liquid level indicator for maximum safety of operations. Water chiller CW-5200TISW has multiple built-in alarm protections, a 2-year warranty, stable performance, low noise and long service life.

Inquiry

Write a Review

Product Introduction

Model: CW-5200TISWTY

Machine Size: 58x29x47cm (L x W x H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-5200TISWTY
Voltage	AC 1P 220-240V
Frequency	50/60Hz
Current	0.4~4.6A
Max. power consumption	0.69/0.79kW
Compressor power	0.6/0.7kW
Compressor power	0.81/0.95HP
Nominal cooling capacity	6482Btu/h
	1.9kW
	1633Kcal/h
Refrigerant	R-407c
Precision	±0.1℃
Reducer	Capillary
Pump power	0.09kW
Tank capacity	6L
Inlet and outlet	OD 10mm barbed conneclor+Rp1/2"
Max. pump pressure	2.5bar
Max. pump flow	15L/min
N.W.	22Kg
G.W.	24Kg
Dimension	58x29x47cm (L x W x H)
Package dimension	65x36x51cm (L x W x H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling capacity: 1900W

* Active cooling

* Control accuracy: ±0.1°C

* Temperature control range: 5°C ~35°C

* Small size with large cooling capacity

* Stable working performance with low noise level and long lifespan

* High efficiency with low maintenance

* No heat interference to the operating room

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Digital temperature controller

The digital temperature controller offers high precision temperature control of ±0.1°C.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Certificate

Product Working Principle

Water Chiller CW-5200TISW Product Working Principle

FAQ

Is TEYU S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
