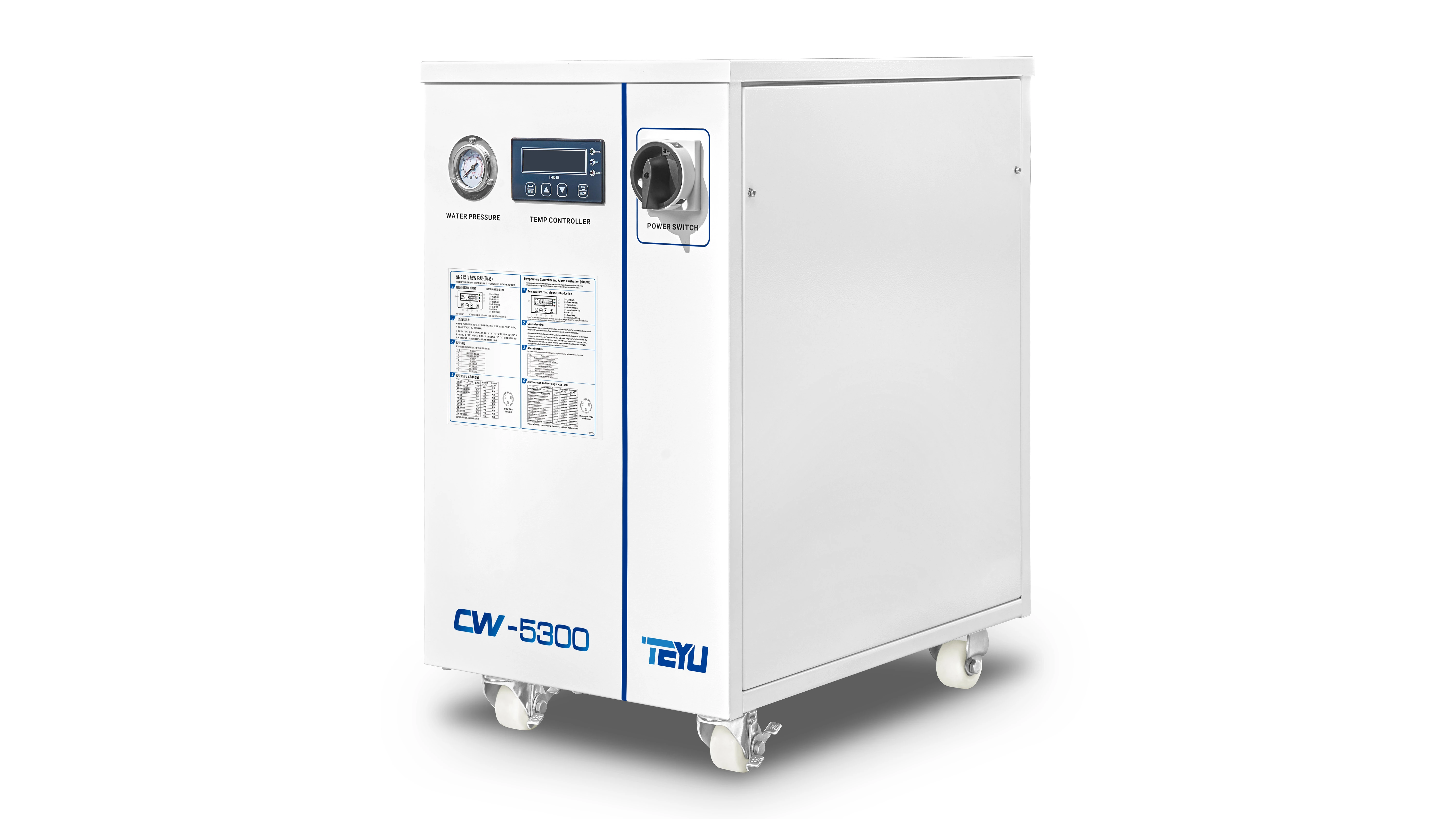

Recirculating Water Cooled Chillers CW-5300ANSW for Cooling Laboratory Equipment

Recirculating Water Cooled Chillers CW-5300ANSW for Cooling Laboratory Equipment

TEYU recirculating water cooler chiller CW-5300ANSW provides precise PID temperature control of ±0.5°C and a large cooling capacity of 2400W, using external circulating water working with the internal system for efficient refrigeration and less space occupation. It can satisfy cooling applications like medical instruments and semiconductor laser processing machines that are operating in enclosed environments such as dust-free workshops, laboratories, etc.

Compared with traditional air-cooled chiller, recirculating water chiller CW-5300ANSW doesn't need a fan to cool the condenser, reducing noise and heat emission to the operating space, which is more green energy-saving. It provides an RS485 communication port to enable communication with the equipment to be cooled. All TEYU chiller machines are CE, RoHS and REACH compliant and come with a 2-year warranty.

Inquiry

Write a Review

Product Introduction

Model: CW-5300ANSW

Machine Size: 63X38X68cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-5300ANSWTY
Voltage	AC 1P 220-240V
Frequency	50Hz
Current	2.5~9.5A
Max. power consumption	1.57kW
Compressor power	0.6kW
Compressor power	0.81HP
Nominal cooling capacity	8188Btu/h
	2.4kW
	2063Kcal/h
Refrigerant	R-407c
Precision	±0.5℃
Reducer	Capillary
Pump power	0.37kW
Tank capacity	10L
Inlet and outlet	Rp1/2"+ Rp 1/2"
Max. pump pressure	3.6bar
Max. pump flow	75L/min
N.W.	46Kg
G.W.	56Kg
Dimension	63X38X68cm (L X W X H)
Package dimension	66X48X92cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling capacity: 2400W

* Active cooling

* Control accuracy: ±0.5°C

* Temperature control range: 5°C ~35°C

* Small size with large cooling capacity

* Stable working performance with low noise level and long lifespan

* High efficiency with low maintenance

* No heat interference to the operating room

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Digital temperature controller

The T-801B temperature controller offers high precision temperature control of ±0.5°C

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Modbus RS485 communication port

The RS485 communication port enables communication with the equipment to be cooled.

Certificate

Product Working Principle

Lab Water Cooled Chiller CW-5300ANSW ±0.1°C Control Accuracy

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
