High-efficiency Heat Dissipation Industrial Chiller CWUL-10 For 15W UV Laser Marking Machine

High-efficiency Heat Dissipation Industrial Chiller CWUL-10 For 15W UV Laser Marking Machine

TEYU high-efficiency heat dissipation industrial chiller CWUL-10 is the perfect cooling solution for your 10W-15W UV laser marking machines! It delivers high temperature stability of ±0.3℃ and a refrigeration capacity of up to 750W, providing active cooling for UV laser marker to ensure stable laser output. Being in a compact and lightweight package, this portable water chiller is built to last with low maintenance, ease of use, energy efficient operation and high reliability.

Laser marking industrial chiller CWUL-10 has multiple alarm functions to protect your UV laser from overheating or any other potential damage. Various power specifications are offered to cater to people from different regions around the world. Two firm handles are mounted on top to ensure easy mobility. Plus, chiller CWUL-10 comes with a 2-year warranty, which ensures that you have peace of mind while using it.

Inquiry

Write a Review

Product Introduction

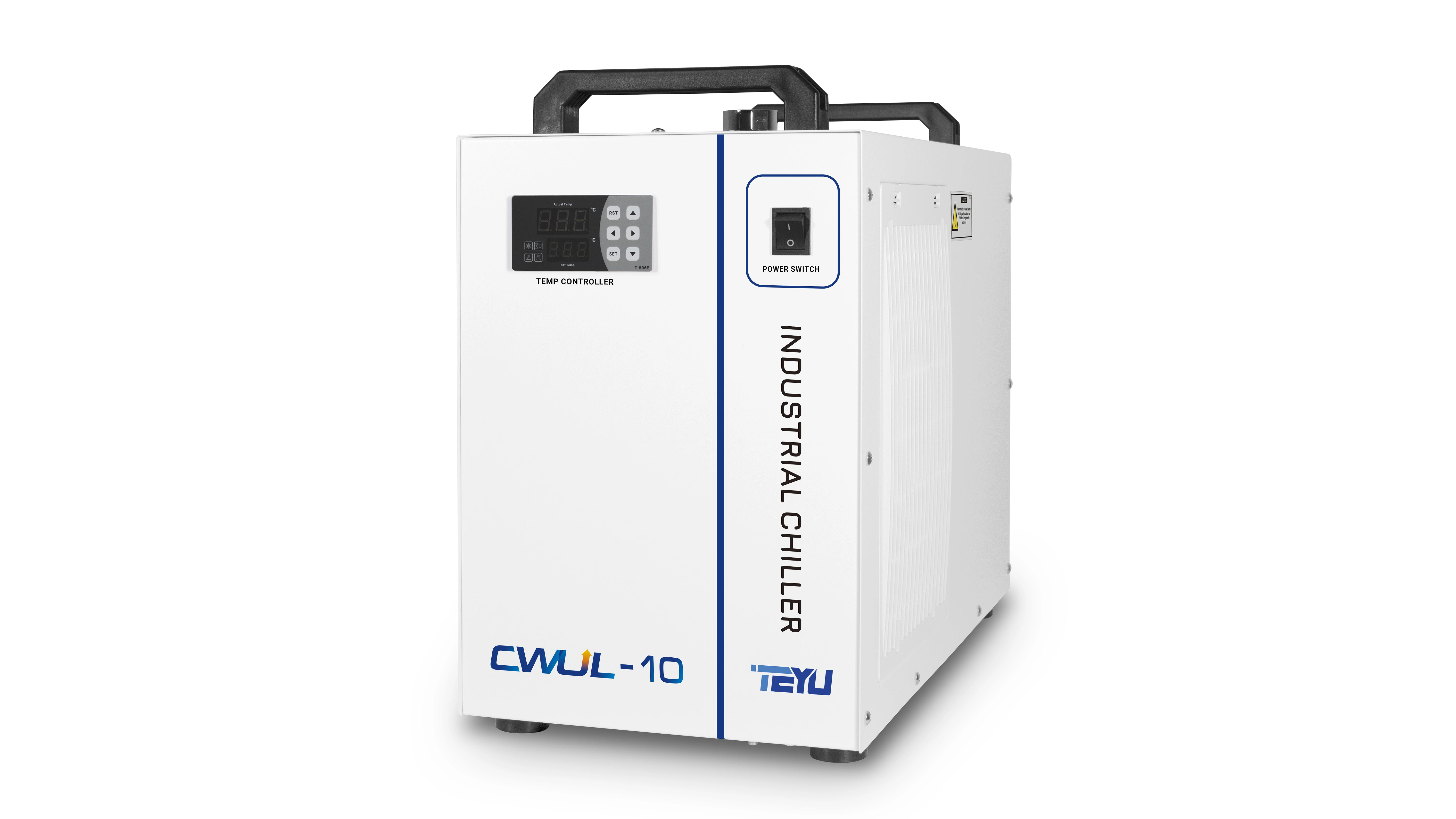

Industrial Water Chiller CWUL-10 for Cooling 15W UV Laser Marking Machine

Model: CWUL-10

Machine Size: 58X29X47cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWUL-10AHTY	CWUL-10BHTY	CWUL-10DHTY	CWUL-10AITY	CWUL-10BITY	CWUL-10DITY
Voltage	AC 1P 220-240V	AC 1P 220-240V	AC 1P 110V	AC 1P 220-240V	AC 1P 220~240V	AC 1P 110V
Frequency	50Hz	60Hz	60Hz	50Hz	60Hz	60Hz
Current	0.5~5.2A	0.5~5.2A	0.5~9.9A	0.4~5.1A	0.4~5A	0.4~9.8A
Max. power consumption	0.93kW	1kW	1.01kW	0.96kW	1.04kW	1.05kW
Compressor power	0.31kW	0.39kW	0.38kW	0.31kW	0.39kW	0.38kW
Compressor power	0.42HP	0.52HP	0.51HP	0.42HP	0.52HP	0.51HP
Nominal cooling capacity	2559Btu/h
	0.75kW
	644Kcal/h
Refrigerant	R-134a
Precision	±0.3℃
Reducer	Capillary
Pump power	0.05KW			0.09KW
Tank capacity	6L
Inlet and outlet	Rp1/2”
Max. pump pressure	1.2bar			2.5bar
Max. pump flow	13L/min			15L/min
N.W.	24Kg
G.W.	27Kg
Dimension	58X29X47cm (L X W X H)
Package dimension	65X36X51cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 750W

* Active cooling

* Temperature stability: ±0.3°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-134a

* Compact and lightweight package

* Easy water fill port

* Visual water level

* Integrated alarm functions

* Easy maintenance and mobility

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Intelligent temperature controller

The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Integrated top mounted handles

The firm handles are mounted on top for easy mobility.

Ventilation Distance

Industrial Laser Marking Chiller CWUL-10 Ventilation Distance

Certificate

Product Working Principle

Laser Marker Water Chiller CWUL-10 Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
