Automatic Packaging Process of Industrial Chiller CW5200
* 1670W cooling capacity; use environmental refrigerant;
* Compact size, long working life and simple operation;
* ±0.3℃ precisely temperature control;
* The intelligent temperature controller has 2 control modes, applicable to different applied occasions: with various settings and display functions;
* Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high 1 low-temperature alarm;
* Multiple power specifications; CE, RoHS and REACH approval; Optional heater and water filter.
| Model | CW-5200THTY | CW-5200DHTY | CW-5200TITY | CW-5200DITY |
| Voltage | AC 1P 220~240V | AC 1P 110V | AC 1P 220~240V | AC 1P 110V |
| Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz |
| Current | 0.5~4.8A | 0.5~8.9A | 0.6~4.9A | 0.6~8.6A |
Max. power consumption | 0.73/0.75kW | 0.77kW | 0.76/0.85kW | 0.78kW |
Compressor power | 0.6/0.62kW | 0.66kW | 0.82/0.95kW | 0.66kW |
| 0.82/0.84HP | 0.9HP | 1.1/1.3HP | 0.9HP | |
Nominal cooling capacity | 6040/7303Btu/h | 5699Btu/h | 6040/7098Btu/h | 5699Btu/h |
| 1.77/2.14kW | 1.67kW | 1.77/2.08kW | 1.67kW | |
| 1521/1839Kcal/h | 1435Kcal/h | 1521/1788Kcal/h | 1435Kcal/h | |
| Pump power | 0.05kW | 0.09kW | ||
Max. pump pressure | 12M | 25M | ||
Max. pump flow | 13L/min | 15L/min | ||
| Refrigerant | R-134a | R-410a | R-134a | R-410a |
| Precision | ±0.3℃ | |||
| Reducer | Capillary | |||
| Tank capacity | 6L | |||
| Inlet and outlet | OD 10mm Barbed connector | 10mm Fast connector | ||
| N.W. | 25Kg | 24Kg | 25Kg | 23Kg |
| G.W. | 28Kg | 27Kg | 28Kg | 26Kg |

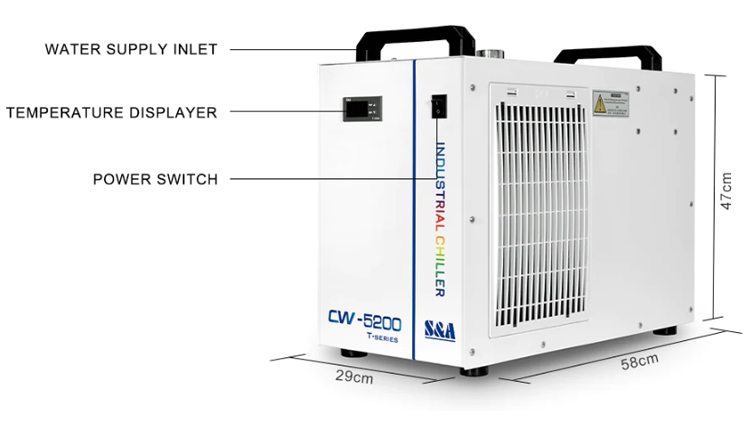

| Dimension | 58X29X47cm (L X W X H) | |||
| Package dimension | 65X36X51cm (L X W X H) | 65X39X62cm (L X W X H) | ||
TEYU S&A Chiller was founded in 2002 with many years of chiller manufacturing experience, and now is recognized as a cooling technology pioneer and reliable partner in laser industry. TEYU S&A Chiller delivers what it promises - providing high performance, highly reliable and energy efficient industrial water chillers with superior quality.
Our recirculating water chillers are ideal for a wide variety of industrial applications. And for laser application in particular, we develop a complete line of laser chillers, ranging from stand-alone unit to rack mount unit, from low power to high power series, from ±1℃ to ±0.1℃ stability technique applied.
The laser chillers are widely used to cool fiber laser, CO2 laser, UV laser, ultrafast laser, etc. Other industrial applications include CNC spindle, machine tool, UV printer, vacuum pump, MRI equipment, induction furnace, rotary evaporator, medical diagnostic equipment and other equipment that requires precise cooling.
